Please kindly noted that this item is sold by Kangtern e-commerce 2021-1 from Joybuy marketplace.

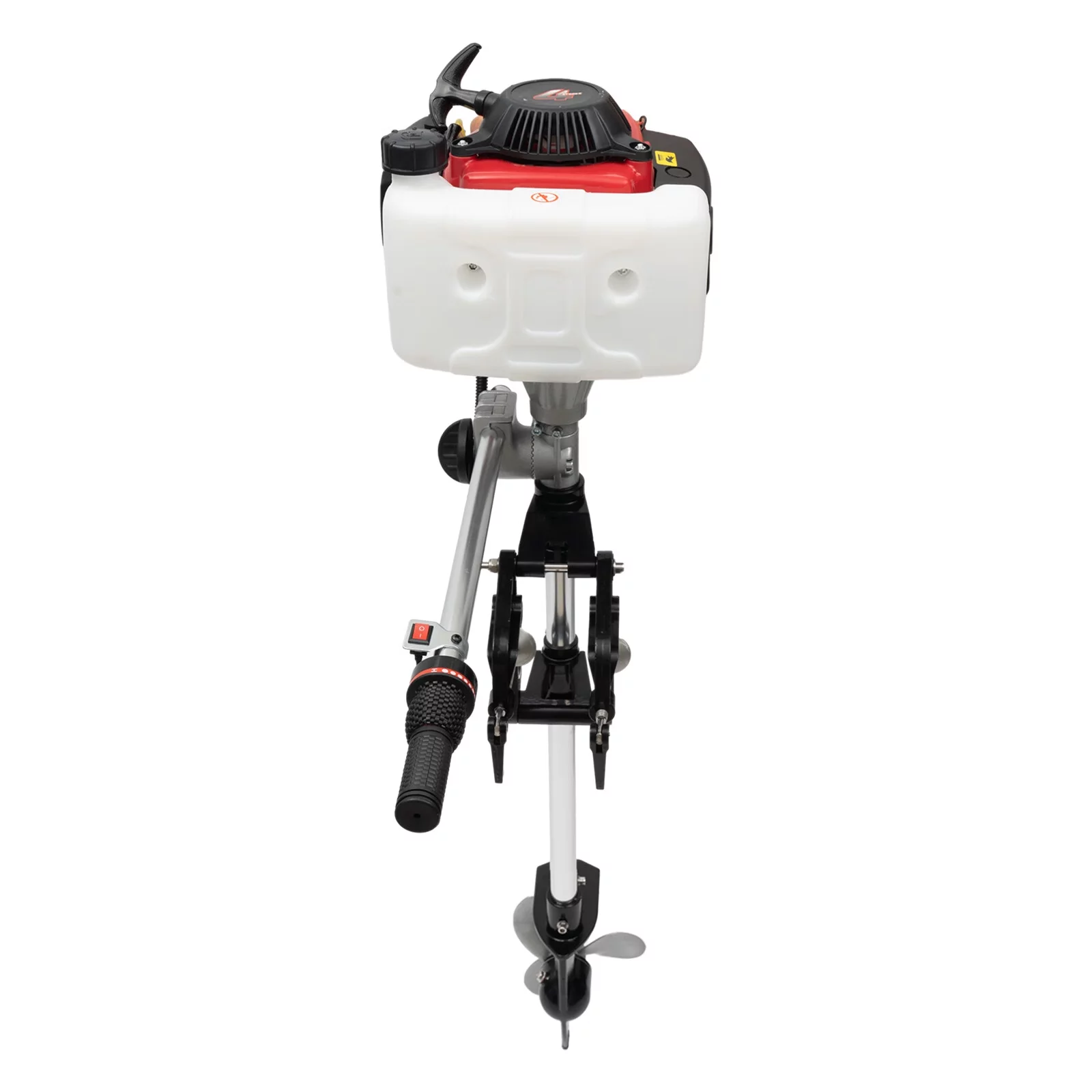

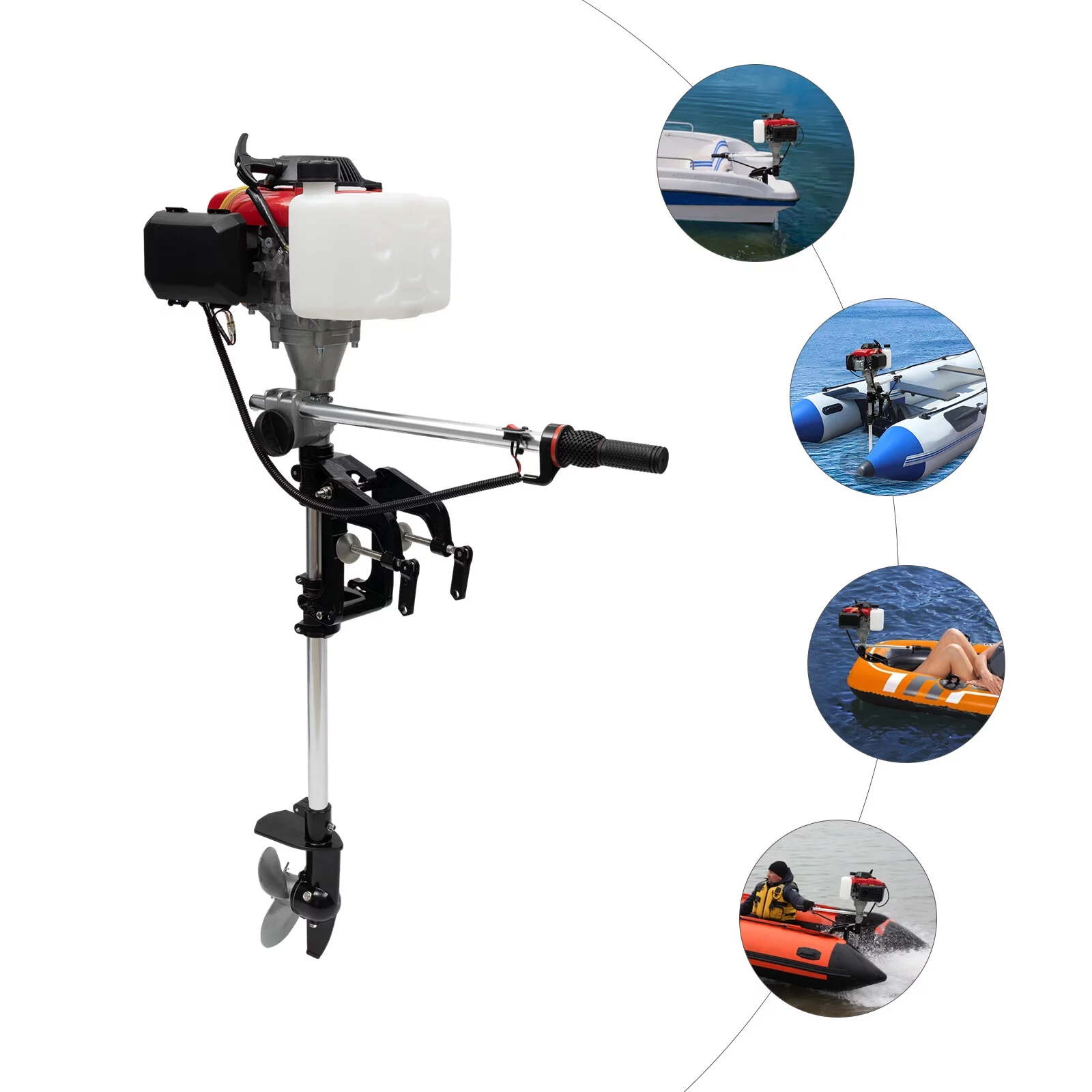

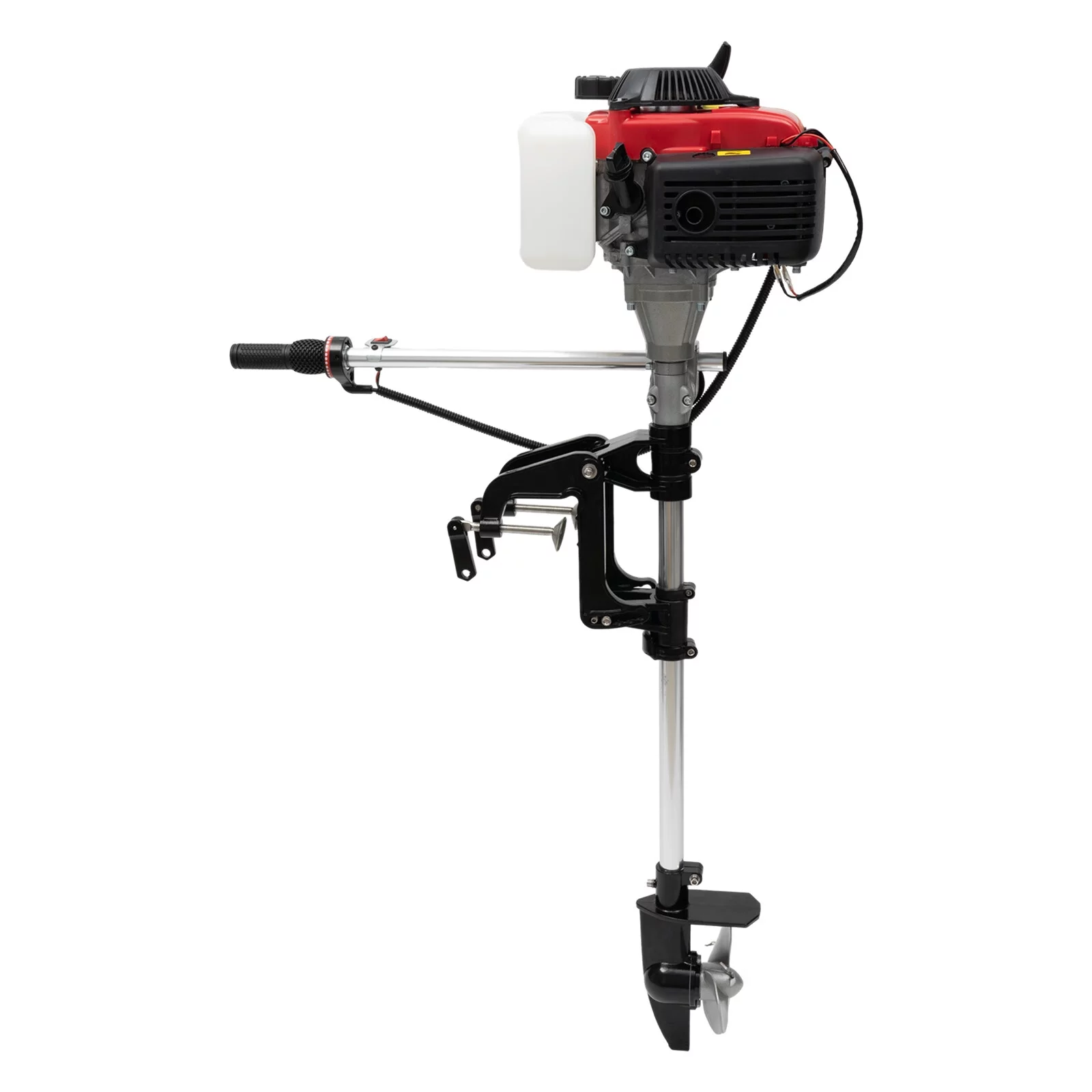

The 4-stroke fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft . such as rubber boats . fishing boats . wooden boats . etc. You can use it for fishing on the river . water farming . river rescue . water excursions . flood relief . etc.

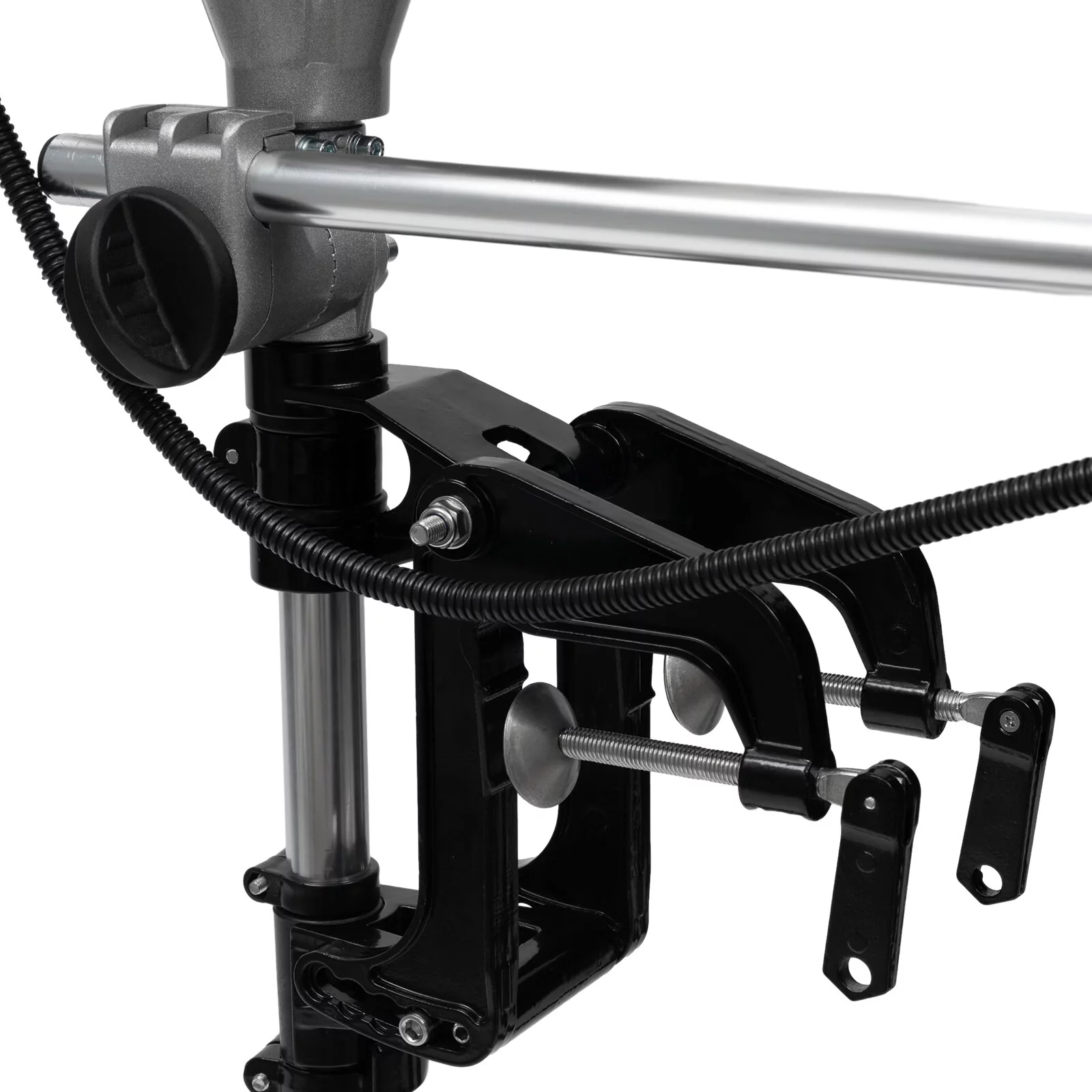

BRACKET:

Material: Aluminium Rod . Plastisol Propeller Color: Black and Silver Drive Rod Length: 56cm/22.05inch Small Bracket Size: 19*8cm/7.48*3.15inch Control Lever Length: 53cm/20.87inch Package Size: 94*19*16cm/37.01*7.48*6.30inch Net Weight: 4.7kg/10.36lbs Gross Weight: 4.95kg/10.91lbs

ENGINE:

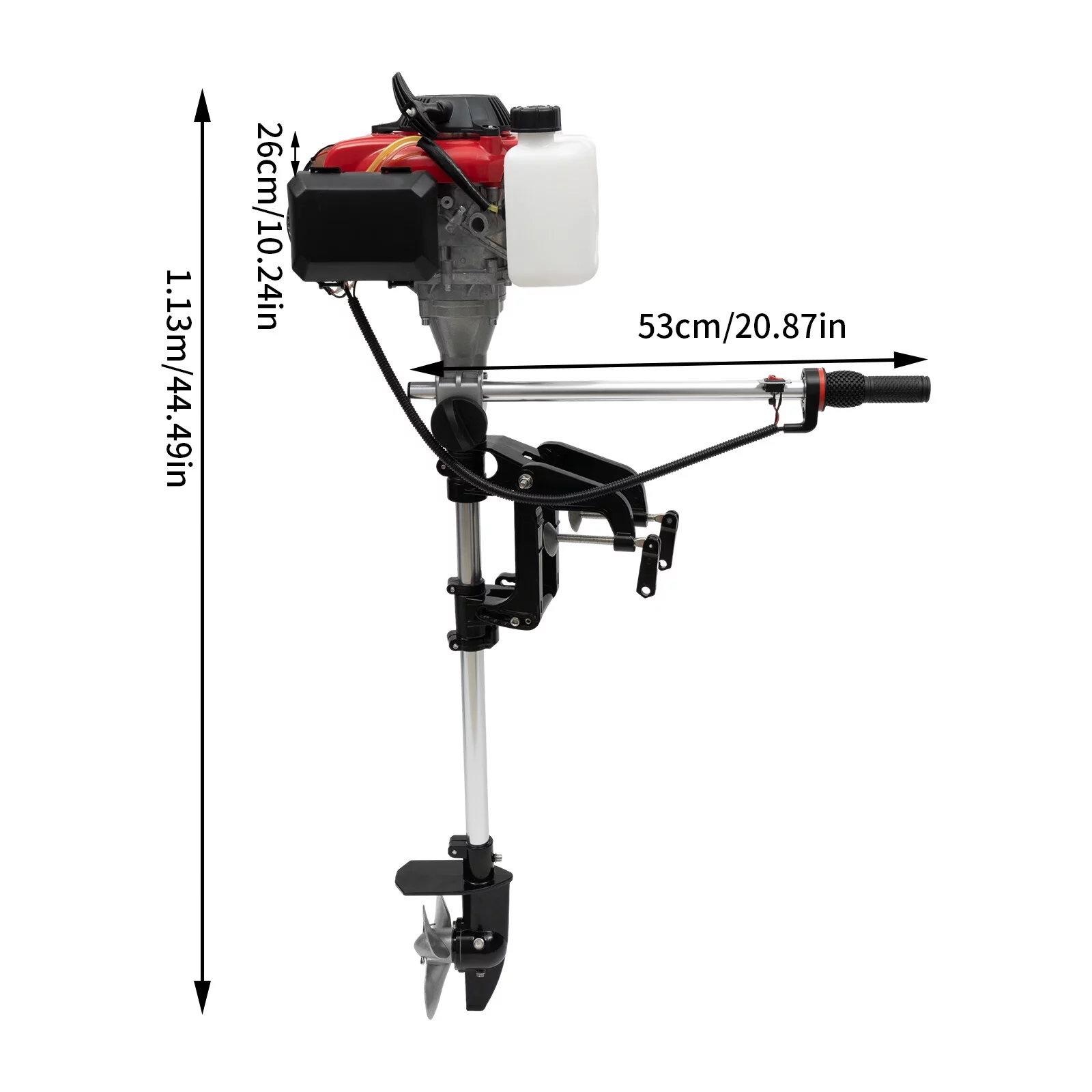

Color: Orange . Black . Silver Size: 26*22.5*29cm/10.24*8.86*11.42inch Engine Model: Four-stroke 144F Displacement: 53.2cc Air-cooling Mode: Forced Air-cooling Gasoline Volume: 1.2L /0.32gal Starting Method: Hand-pull Start Speed: 15km/h Steering: Handle Steering Fuel Consumption: 1-1.2 Hours/ One Tank of Gasoline Fuel Type: Gasoline Mounting Type: Engine Package Size:33.5*29.5*23.5cm/13.2*11.6*9.2inch Net Weight: 5.8kg/12.8lbs Gross Weight: 6kg/13.2lbs Size After Installation: 26*53*113cm/10.24*20.87*44.49inch

Installation Instruction:

Installation Warning: Most boats are approved for a maximum power rating . which is shown on the boat’s nameplate. Do not configure your boat with an outboard that exceeds this limit. Installation position: The center of the boat’s bottom

Outboard installation instructions:

1.Select the outboard engine with corresponding specification ( 1.6KW ) according to the size of the boat . and determine the shaft length of the boat engine by the height of the transom 2.After hanging the outboard on the transom . lock it with clamping bolts 3.After the outboard is fixed . you need to pay attention to the water level to be flooded to the best water level to ensure the cooling water pump cools the engine smoothly while making the outboard propulsion system play the best thrust performance

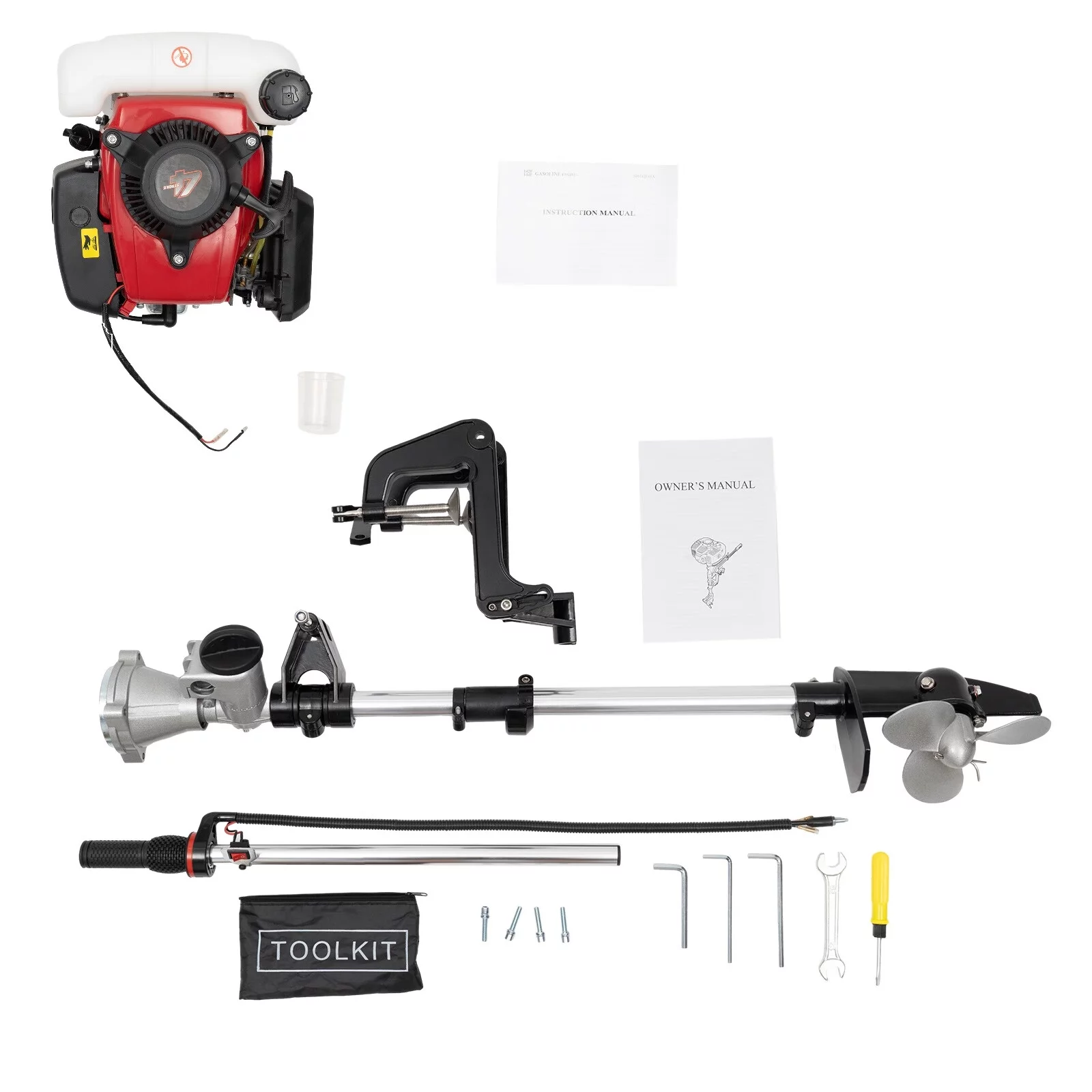

Engine Package:

1* Engine 1* Measuring Cup 1* Chinese Instruction Other Accessories for Assembly

Bracket Package:

1* Drive Rod 1* Small Bracket 1* Control Lever 1* Big Wrench 1* Metal Stick 1* Screwdriver 3* Small Wrenches 4* Screws 1* English Instruction
